Clew Manual

Writing

Links and embeds

Wikilinks are the connective tissue of a vault: type [[ and a name, and two notes are joined — no paths, no URLs, no ceremony. This chapter covers how Clew resolves those names, how to control a link's text and target, how ![[embeds]] pull whole notes, images, PDFs, video, and even canvases into the middle of another note, and what keeps every link working when you rename and reorganize.

The basic form is a note name in double brackets. All of these are live in the demo vault:

You write

[[Welcome]]                          link by name
[[Clew Design|the design note]]      with display text
[[Math and Theorems#Dialect extras]] to a heading
[[#Embeds (transclusion)]]           to a heading in this note
[[Syntax Showcase]]                  via a frontmatter alias

How names resolve

Resolution is Obsidian-style, and the rules are worth knowing exactly:

Display text and heading links

A pipe sets the link's visible text: [[Clew Design|the design note]] shows "the design note" and opens Clew Design. A # targets a heading: [[Note#Heading]] opens the note and jumps to that heading (matched case-insensitively), and without display text such a link renders as "Note § Heading". The two combine as [[Note#Heading|shown text]]. A link with an empty target — [[#Heading]] — jumps to a heading of the note it appears in. The editor completes heading names for you after the # (see the editor chapter).

Unresolved links create notes

A link to a name that matches nothing is still a link — it renders dashed, as a visible loose end. Clicking it creates the note — name.md in the vault root for a bare name, or at the written path for a path-form link — and opens it, which makes the natural drafting flow work: write prose, bracket the concepts that deserve their own notes, and follow the dashed links later to fill them in. The Out panel lists a note's unresolved links so the loose ends are visible in one place (Panels).

Links to files that are not notes

The target of a wikilink need not be a note. [[sample.pdf]], [[clew-gradient.png]], or a link to any audio or video file opens the file in a viewer tab; [[Demo Canvas.canvas]] opens the canvas itself. Non-note names resolve by the same shortest-path rule, using the full file name with its extension.

Following links

In reading mode, links are links: click to follow, ⌘-click to open in a new tab. In the editor, where a plain click must place the cursor, ⌘-click a wikilink to follow it, adding ⌥ for a new tab. External Markdown links — [text](https://…) — open in your system browser; the rendered note itself never navigates away.

Embeds: transclusion

Prefix a wikilink with !, on a line of its own, and the target is rendered inside the current note:

You write

![[Clew Design]]

![[Clew Design#Goals]]

A note embed appears as a framed box: a title bar linking to the embedded note, and below it the note's rendered body — frontmatter stripped, everything else typeset exactly as the note itself would be. With a #Heading, only that section is embedded: from the heading line to the next heading of the same or higher level.

Embeds nest — an embedded note may contain embeds of its own — and the nesting is cycle-safe: a note that embeds itself, directly or around a loop, renders a "(circular embed)" box instead of hanging, and chains deeper than three levels stop there. An embed whose target does not exist renders a "(not found)" box.

An embed also stays current: change the embedded note and every note that embeds it re-renders, including up a chain of nested embeds.

Embeds that fold

A long transclusion can bury the note doing the transcluding. Add collapsed or open as the last segment of the link and the embed gains a disclosure triangle:

You write

![[Week 3]]                     a plain embed — no triangle
![[Week 3|collapsed]]           folds; starts closed
![[Week 3|open]]                folds; starts open
![[Week 3|Reading list|open]]   …with "Reading list" as the title

Clicking the title bar folds or unfolds it — and Clew writes the new state back into your note, swapping collapsed for open on that line. The state therefore lives in the file: it travels with the vault, into git, and onto whatever else opens the note. Clicking the title text still opens the embedded note, as it always did; the rest of the bar is the fold. On the iPad a tap on the bar does the same, and writes the same word back.

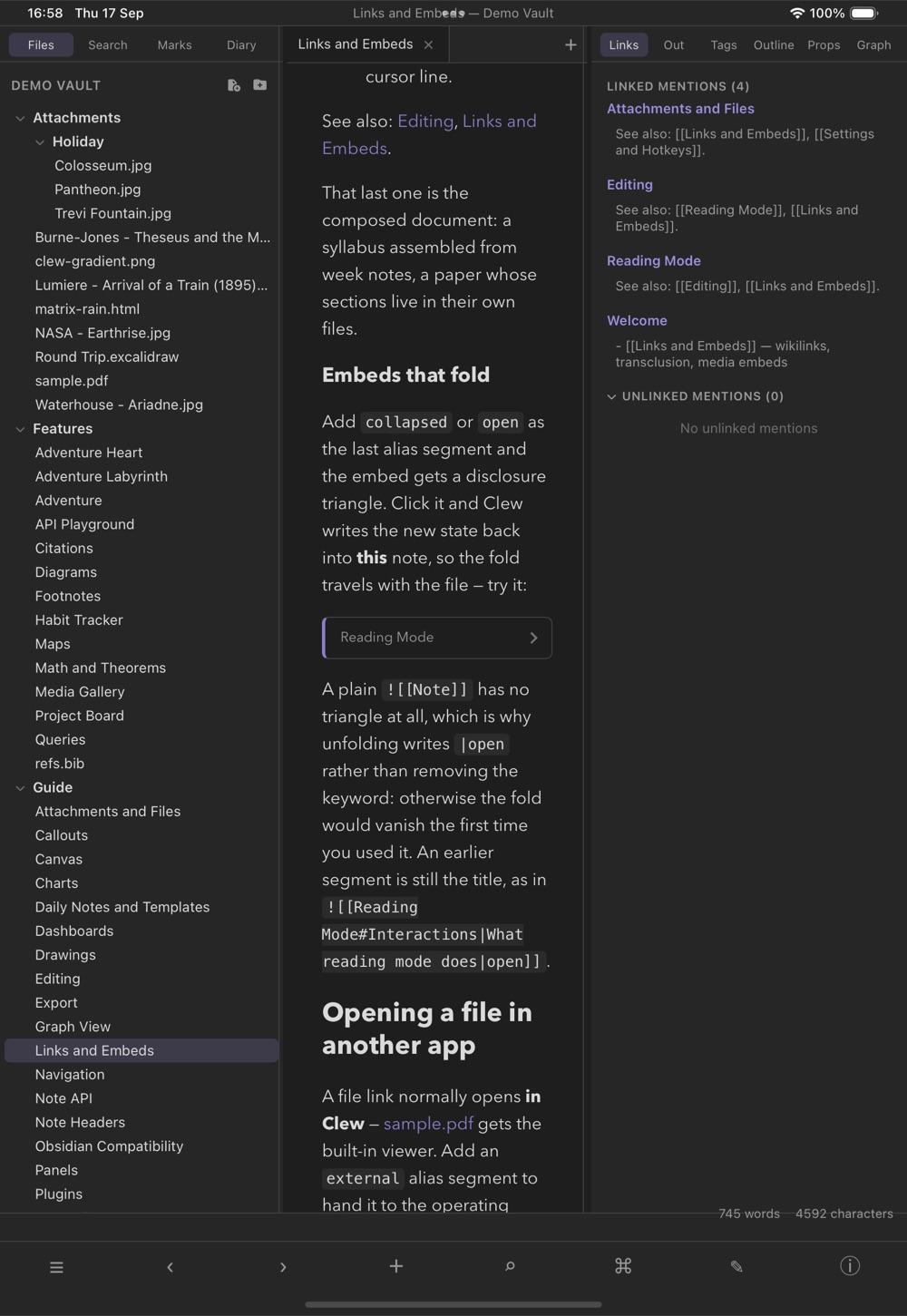

Clew on an iPad showing the Links and Embeds guide in reading mode, with a folded embed titled Reading Mode drawn as a bar with a disclosure chevron
The demo vault's Links and Embeds guide on an iPad: the collapsed embed, folded to its title bar. A tap unfolds it and writes open into the note.

Note that open is not the same as leaving the keyword off. A bare ![[Week 3]] has no disclosure triangle at all, so unfolding writes |open rather than removing the keyword — otherwise the fold would vanish the first time you used it. Remove the keyword by hand to go back to a plain embed. An embed inside another embedded note folds too, but its line belongs to a different file, so that one is not written back.

How much frame an embed draws

By default an embed is a framed box: an accent stripe down its left edge, a hairline border, rounded corners, and a title bar naming the note. That is right when the embed is a quotation of somewhere else — and wrong when what you actually want is the other note's words, here, as part of this one. Two keywords turn the frame down:

You write

![[Week 3]]          the framed box — the default, unchanged
![[Week 3|quiet]]    the accent stripe alone, still naming the note
![[Week 3|bare]]     no frame at all, no title

Quiet keeps the stripe and the title and loses the panel around them: still visibly a transclusion, but it no longer interrupts the page. Bare keeps nothing. The transcluded note's blocks sit in the host note's own flow, spaced exactly as if you had typed them there — no box, no stripe, no filename, and no link back to the source. Use it for the composed document: a syllabus assembled from week notes, a paper whose sections live in their own files.

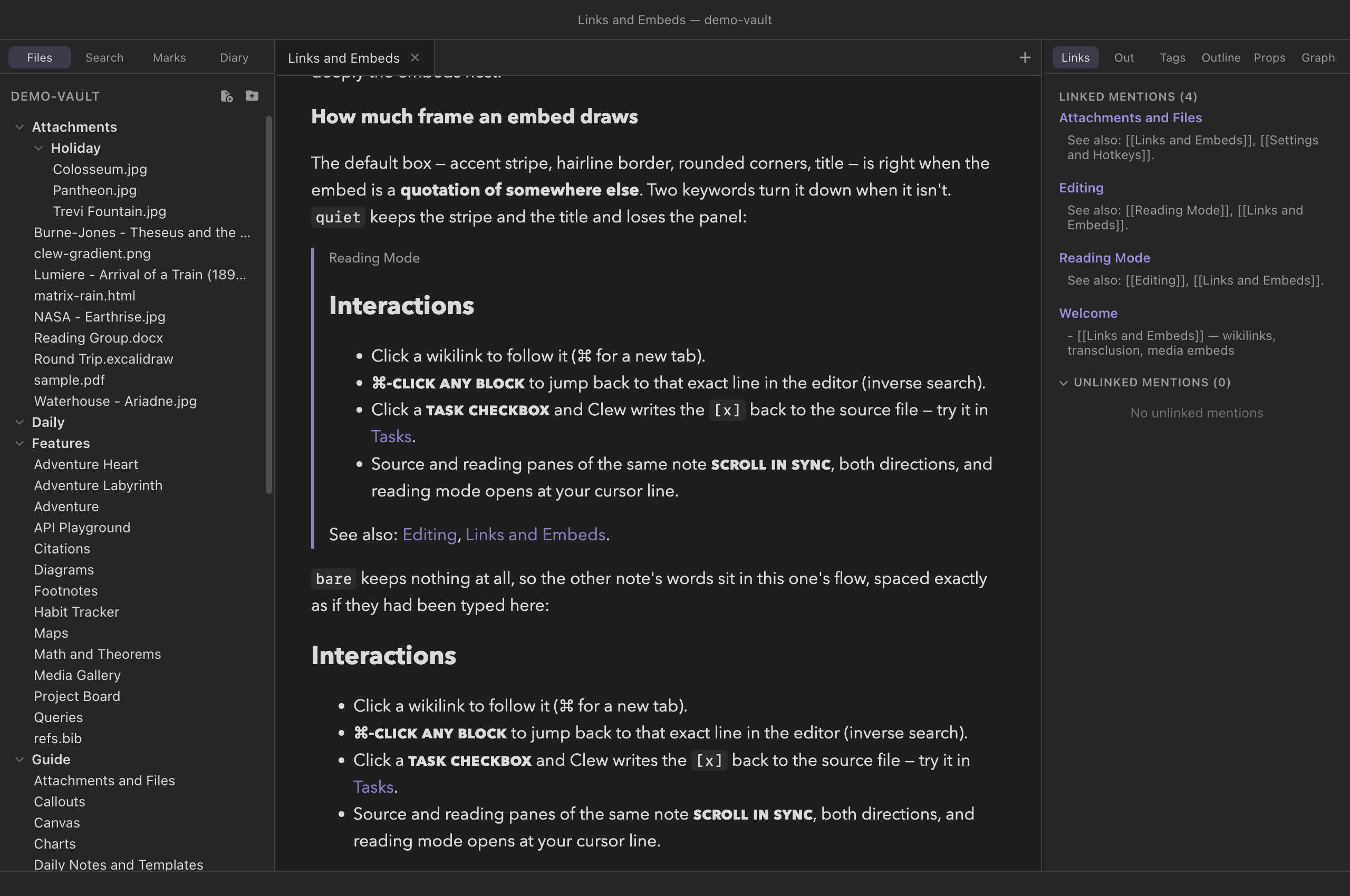

The demo vault's Links and Embeds guide in reading mode: one section of the Reading Mode note embedded twice — first with quiet, drawn as an accent stripe and a title, then with bare, indistinguishable from the surrounding prose
The demo vault's Links and Embeds guide: the same section of another note embedded twice — quiet, the stripe and the title without the panel, and bare, sitting in the prose as if it had been typed there. The folded form is the figure above.

The keywords combine with the fold and with a title, in any order, so ![[Week 3|Reading list|quiet|collapsed]] is a folded, quietly framed embed titled "Reading list". Toggling the fold rewrites them in a canonical title|chrome|state order. Bare is the exception: it draws no title bar, so there is nothing to fold — a bare embed asked to collapse stays bare, since a folded bare embed would render as nothing at all.

Note A bare embed still leaves a wrapper element in the page carrying the internal-embed is-bare class, so a vault stylesheet can put its own decoration back — a marker in the margin, a tint, whatever suits the document.
Caution Block embeds are recognized only when the ![[…]] stands on its own line. In the middle of a sentence, the ! renders as a literal exclamation mark and the [[…]] becomes an ordinary link — the text flows on, nothing breaks, but nothing is transcluded either.

Block references

A heading link points at a section. A block reference points at one block — a single paragraph, list item, table, or code block. Mark the block with a ^identifier, then link to it with [[Note#^identifier]] or transclude it with ![[Note#^identifier]]. This is Obsidian's syntax exactly, so a vault that already uses it opens here unchanged.

You write

Ideal observers are a modelling convenience, not a
claim about anyone. ^ideal-obs

Elsewhere: as argued in [[Method#^ideal-obs]].

The marker goes at the end of the block's last line. Tables and fenced code blocks have no room for a trailing word, so theirs goes on a line of its own directly beneath — which is where Clew writes it, and where it reads one from:

You write

| Sender | Receiver |
| ------ | -------- |
| 1      | A        |
^payoff-table

Markers are invisible in reading mode — the identifier is machinery, not prose, and a note peppered with visible ^a3f9c1 would be unreadable. Following a block reference scrolls to the block: to the paragraph's first line, to the top of the table, to the opening fence of the code block — never to the marker itself, which would leave the thing you asked for above the window.

Copying a block link

You will rarely type an identifier. Put the cursor anywhere in a block and run Copy Link to Block (the Edit menu, or the command palette). Clew writes a six-character identifier into the note if the block has none, then puts [[Note#^id]] on the clipboard. Run it twice on the same block and you get the same link back — a block is named once, and the command never accumulates identifiers.

Going the other way, typing #^ after a note name inside a [[ link lists the identifiers that note already has, with the line each one sits on (see the editor chapter).

One Clew difference In the jmarkdown dialect ^ is superscript — x^2 is x². So a block marker must be preceded by a space, which is what tells the two apart: x^2 ending a paragraph stays an exponent, while … ^x2 is a block identifier. Identifiers use Obsidian's own character set, letters, digits and hyphens.

Media embeds

When the target of an embed is a media file, it renders natively:

Sizes and captions

Images and video take Obsidian's size syntax after a pipe. The last pipe segment, when it is a bare number or a widthxheight pair, is read as a size in pixels; any earlier segments form the alt text:

You write

![[clew-gradient.png|200]]                        width 200
![[clew-gradient.png|300x200]]                    width 300, height 200
![[clew-gradient.png|A stretched gradient|320x60]] alt text, then size

A segment that is not a well-formed size — |300x, |x200, |large — is treated as alt text, so nothing is ever silently swallowed. The sizes become the image's HTML width and height attributes (CSS pixels); in LaTeX and PDF export, images are scaled to match (a pixel width converts to points at 0.75 pt per pixel), and an image without a size fits the line width.

When a pixel width is not enough: @image and @video

The pipe syntax is Obsidian's, and it thinks in pixels. That is the wrong unit for a document you also mean to print: 400 px is a fixed slab of screen, whereas what you usually want is this much of the text width, on paper as well as on screen. The engine's @image and @video directives take a richer attribute set and translate it per output format.

You write

@image(diagram.png)[A small-world graph]{width=0.6}

@image+(diagram.png)[Centred]{width=0.6 align=center}

@video(clips/run.mp4)[A run of the model]{width=0.6 poster=clips/still.png}

The parentheses hold the path — the one thing neither directive can do without. The brackets are alt text. The braces are attributes. The + in @image+ makes it a block of its own rather than something sitting in a line of prose, which is what align needs to mean anything: on the inline form it is ignored, with a warning.

Four attributes — width, height, scale and align — are interpreted rather than passed through, so one source serves both outputs:

You writeMeans
width=0.6Six tenths of the text width — 0.6\linewidth in LaTeX, 60% in HTML
width="60%"The same thing, said the other way
width=8cmA physical size, verbatim in both (CSS and LaTeX share cm, mm, in, pt)
width=400pxPixels — 400px on screen, 300bp in print. A bare number above 1 means pixels too
align=centerCentred; also left and right. Block form only

A tex- or web- prefix confines an attribute to one output and beats the unprefixed key there, which is how one figure can be 50% on screen and 80% on the page: {width=0.5 tex-width=0.8 web-loading=lazy}. Anything else in the braces passes through as an ordinary HTML attribute (class, id, srcset, controls, …) and is ignored by LaTeX. For genuinely arbitrary LaTeX options there is tex-options.

One thing to know before it bites: a backslash is not legal inside the braces. Writing {width="0.8\linewidth"} is the natural mistake, and the attribute grammar rejects the whole set — which is exactly why width is a semantic key you give 0.8 to instead. The engine now warns and names the offender when this happens; it used to drop the attributes in silence.

A video cannot play on paper, so @video degrades rather than translates when exporting to LaTeX. By default it becomes the poster frame hyperlinked to the video, which works in every PDF viewer; the Video mode setting (or {tex-mode=…} on one video) can instead embed the stream for Acrobat, attach the file, or print the still frame alone. Where a poster is needed and none was given, one is extracted from the first frame if ffmpeg is available.

None of this replaces anything. A plain ![[image.png|300]] and a standard Markdown ![alt](src) both still work exactly as before; reach for @image when you want the extra control, and for @begin(figure) when you want a numbered caption too — the two compose.

Embedding a presentation

A slide deck can live inside a note, running, with @reveal[…]:

You write

@reveal[Talks/intro]

@reveal[Talks/intro/index.html]{height=420px}

@reveal[http://localhost:8888/prez/teaching/voting-theory/]{aspect=4:3}

The target is either a path inside the vault — an HTML file, or a folder holding an index.html, which is what a reveal.js export looks like — or an http(s) URL. The URL form is the one that matters for a deck your web server builds rather than stores: a .php file served straight out of the vault would be its source code, not a presentation, and Clew says so rather than showing you the source.

The frame is interactive: arrow keys, the deck's own controls, its fullscreen button. It loads only when scrolled into view, so a note can hold several decks without starting all of them at once.

Size and style

AttributeEffect
width=80%Frame width; the default is the full width of the note column. A bare number means pixels.
height=420pxA fixed height. Without one the frame keeps an aspect ratio instead, so it reflows with the column.
aspect=4:3The shape to keep when no height is given; the default is 16:9.
style="…"Any further CSS, verbatim — a border, a margin, a shadow.
class="…"An extra class, for a vault stylesheet to hook.
title="…"The frame's accessible name; the default is “Embedded presentation”.
Quote a value with a slash in it The dialect's attribute syntax ends an unquoted value at the first character that is not a letter or digit, so write aspect=4:3 or aspect="4/3" — a bare 4/3 is a syntax error, and the whole attribute set is lost when one attribute fails to parse. Quoting always works: {height="420px" width="80%"}.

Two other spellings of the same directive come free with the dialect: @reveal+[…] on its own line is the block form, and @begin(reveal)…@end(reveal) the environment form. They take the same attributes and produce the same frame.

Renames and moves rewrite links

Renaming or moving a note — from the file explorer, or by dragging it into another folder — rewrites every wikilink to it, across the whole vault, in the same operation. Renaming a folder does the same for every note inside it. The rewriting is aware of how each link was written:

The rewriting extends beyond Markdown. Canvas files reference notes, images, and PDFs by path, and a rename updates every file reference in every .canvas in the vault too — so a reorganized vault's canvases keep pointing at the right files.

Tip Because links repair themselves, reorganizing is cheap. Start flat, let structure emerge, and move notes into folders when a grouping becomes obvious — nothing breaks. The one thing rewriting cannot fix is a link that was already unresolved: dashed links track the name you typed, and only gain a target when a note of that name appears.

Every link is indexed from both ends. The Links panel shows the active note's backlinks — who links here, grouped by source, with the line each link sits on — and below them unlinked mentions: places where the note's name or an alias appears in plain text without being a link, each with a Link button that turns the mention into a wikilink where it stands. The panels have a chapter of their own.

Opening a file in another app

A link to a file normally opens it in Clew — a PDF in the built-in viewer, an image or a recording in a viewer tab. Sometimes that is not what you want: the PDF belongs in your annotating app, the spreadsheet in the real spreadsheet program. Two link forms hand the file to the operating system instead, so it opens in whatever application owns the type:

[[paper.pdf|external]]
[[paper.pdf|Read the paper|external]]
[Open the report](file:///Users/you/Documents/report.pdf)

The first is Clew's own: add external as an alias segment and the link opens the file outside Clew. A second segment is still the link's caption, so [[paper.pdf|Read the paper|external]] reads as prose; external alone is a mode rather than a caption, so the file's name is used. It works in reading mode and on a ⌘-click in the editor alike, and the file must be in the vault.

The second is the file:// URL, which works the same way in Obsidian — so notes that came from there keep working. Unlike the alias, a file:// link may point anywhere on your disk, which is the reason it exists: a vault of notes about files kept elsewhere. Only local paths are accepted; a file:// URL naming a remote host is refused.

On iPad iPadOS has no "application that owns the type" to hand a file to, so both forms open the file in Quick Look, the system viewer the Files app uses, whose share button offers Markup, Print, and every app on the iPad that can take the file. The same guards apply, and one more: a file:// link can only reach a file inside the open vault, because nothing outside the app's sandbox is reachable, and a link to a folder is refused with a notice rather than opened.

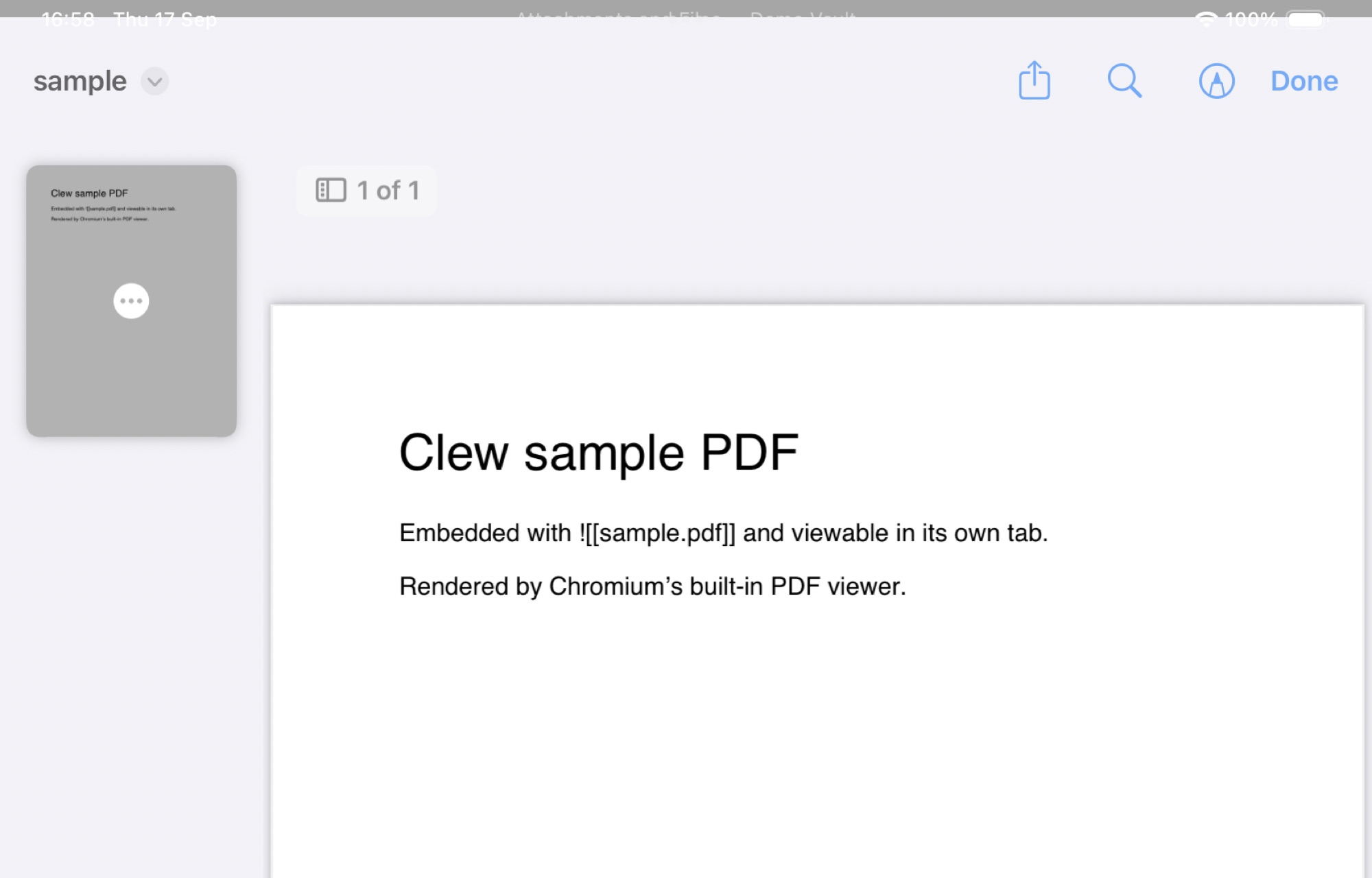

Quick Look on an iPad showing a PDF from the vault, with the Share button and a Done button in its toolbar
An external link on the iPad: the file opens in Quick Look, and its share button is the way into any other app.
Documents open; programs do not Handing a file to the OS means the OS decides what to do with it — and for a .app, .exe, or a shell script, that means running it. A note is content, and content you received should never be one click from executing something, so Clew refuses those extensions by name and says so instead. The refusal is a speed bump, not a sandbox: an ordinary document can still be opened by an application you have configured to do surprising things, so treat links in an unfamiliar vault the way you would treat its attachments.

Because Clew fully supports symbolic links (Vaults and files), a vault can weave in folders that live elsewhere on disk: symlink a project's notes folder into the vault and its files are first-class citizens — indexed, searchable, linkable, and rendered — even though the real files sit outside the vault. Wikilinks to them resolve like any others, and edits save through the link to the real file. Cycles are detected and walked once, so a link loop cannot hang the indexer.

Obsidian compatibility Everything on this page is Obsidian-shaped on disk: the link syntax, the shortest-path resolution rule, alias fallback, the ![[…]] embed forms, and the size pipe all match, so a vault's links mean the same thing in both apps. Two asymmetries to know: Clew also treats .jmd files as notes, which Obsidian does not index — stick to .md in a shared vault — and symlinked folders, first-class in Clew, are largely ignored by Obsidian.

Reference

Link and embed forms:

FormMeaning
[[Name]]Link by note name (case-insensitive; shortest path wins on ties)
[[Folder/Name]]Link by explicit vault path
[[Name|text]]Link showing text
[[Name#Heading]]Link to a heading (shows "Name § Heading")
[[#Heading]]Link to a heading in the same note
[[Name#^id]]Link to a block (shows "Name ¶ id")
… ^idMark the block that ends on this line
^id (own line)Mark the table or code block above
[[file.pdf]], [[file.canvas]]Link to a non-note file (opens viewer / canvas)
[[file.pdf|external]]Open the file in the OS default app (above)
[[file.pdf|text|external]]The same, showing text
[…](file:///path)Obsidian-style: open a file anywhere on disk in its default app
![[Name]] (own line)Embed the note's rendered body
![[Name#Heading]]Embed just that section
![[Name#^id]]Embed just that block
![[Name|quiet]]Embed with the accent stripe only (above)
![[Name|bare]]Embed with no frame and no title at all
![[Name|collapsed]]Foldable embed, starting closed (above)
![[Name|open]]Foldable embed, starting open
![[img.png|300]]Media embed, width 300 px
![[img.png|300x200]]Media embed, width × height
![[img.png|alt text|300]]Alt text, then size
@image(p)[alt]{attrs}Image with translated attributes (above)
@image+(p)[alt]{attrs}The same as its own block — what align needs
@video(p)[alt]{attrs}Video, degrading to a poster frame in print
![[x.excalidraw]]An Excalidraw drawing, read-only
[text](url)External link — opens in the system browser

File types that embed as media, by extension:

KindExtensionsRenders as
Image.png .jpg .jpeg .gif .webp .avif .svg .bmpInline image (size pipe applies)
PDF.pdfEmbedded PDF viewer (annotatable)
Audio.mp3 .m4a .wav .ogg .flacAudio player
Video.mp4 .webm .movVideo player (size pipe applies)
Canvas.canvasLive read-only canvas view
Drawing.excalidraw .excalidraw.mdRead-only Excalidraw view (chapter)
Office.docx .xlsx .pptx .odt .ods .odpStatic thumbnail; |live for an editable LibreOffice (chapter)
