The vault

Attachments and files

Notes are rarely only text. A vault accumulates screenshots, scanned papers, photographs, lecture recordings, and PDFs, and Clew treats them as what they are: ordinary files in the folder, linked from notes the same way notes link to each other. This chapter covers the whole pipeline — pasting and dropping files into the editor, where they land and what they are called, how embeds render in reading mode, the built-in viewer tabs for media, and how to keep the accumulation organized.

Pasting and dropping

The fastest way to get a file into the vault is not to think about it. Copy an image anywhere — a screenshot, a picture from a web page, a chart out of another app — and paste it straight into the editor with ⌘V. Clew saves the image into the vault's attachment folder and inserts an embed at the cursor:

![[Pasted image 20260823142917.png]]

Dropping works the same way, and for any kind of file: drag one or more files from Finder (or your platform's file manager) onto the editor, and each is saved to the attachment folder and linked at the drop position, one per line. Media files — images, PDFs, audio, video — are inserted as ![[embeds]] so they render in reading mode; any other file type gets a plain [[link]] instead.

What the file is called

A pasted clipboard image usually arrives with no useful name (the clipboard calls everything image.png), so Clew names it by timestamp: Pasted image 20260823142917.png — year, month, day, hour, minute, second. A dropped file keeps its own name. In both cases the name is sanitized (path separators and colons become dashes) and deduplicated against the attachment folder: pasting chart.png twice gives you chart.png and chart 1.png, never an overwrite.

HEIC photographs

Photographs from an iPhone often arrive as HEIC, which Chromium — and therefore Clew's reading mode — cannot display. On macOS, Clew converts HEIC and HEIF files to JPEG transparently as they are saved, so the vault only ever receives a .jpg. The conversion preserves EXIF metadata, including GPS coordinates — which matters if you use photo maps, where geotagged photos pin themselves to an interactive map. If the conversion fails for some reason, the original bytes are kept rather than lost.

How attachments are linked

Attachments are addressed exactly like notes: by name, with the vault resolving where the file actually lives. ![[Earthrise.jpg]] finds the file whether it sits in the vault root, in Attachments/, or three folders deep — when several files share a basename, the one with the shortest path wins, and you can always write an explicit path (![[Attachments/Holiday/beach.jpg]]) to pick one out. Because bare names resolve regardless of folder, you can reorganize the attachment folder later without breaking the embeds that point into it.

A plain [[wikilink]] to an attachment (no !) does not embed it; it renders as an ordinary link, and clicking it opens the file in a viewer tab. The full link grammar — aliases, headings, transclusion of notes — is covered in Links and embeds; this chapter sticks to what is specific to files.

Viewer tabs

Images, PDFs, audio, and video open as tabs in their own right — click one in the file explorer, or click a [[link]] to one in reading mode, and it opens in a viewer tab alongside your note tabs. A viewer tab behaves like any other: it can be dragged into a split, kept open next to the note that discusses it, and reopened from the tab's history. PDFs open in Clew's own viewer — page navigation, thumbnails, zooming, text search and selection, printing, and annotation.

Embedding media in notes

An embed is an attachment placed inside a note's rendered output. The syntax is Obsidian's: an exclamation mark before a wikilink, on its own line.

Images

![[NASA - Earthrise.jpg]]

renders the image at its natural size, capped to the note's width. Images take Obsidian's size syntax after a |: a width in pixels, a width and height as widthxheight, or alt text followed by a size.

![[clew-gradient.png|200]]
![[clew-gradient.png|300x200]]
![[clew-gradient.png|A stretched gradient|320x60]]

The rule for the segments after the name: only the last one can be a size, and it must look like one — all digits, or digitsxdigits. Anything else is treated as alt text, so ![[photo.jpg|The 1968 original]] is a caption, not a mangled size. Videos accept the same size syntax; audio and PDFs ignore it.

PDFs

![[sample.pdf]] embeds the document itself inside a titled box in the note — page through it, search it, and annotate it without leaving reading mode. The box's title is a link that opens the same file in a full viewer tab, and beside it sits a ⟷ button that expands the embed to the width of the window and back: useful when you want the page and comment sidebars beside the document rather than stacked below it, which is what happens in a narrow column.

Annotating

The viewer's Annotate tab gives you highlighting, ink, shapes, notes and stamps. Anything you draw is written into the PDF file itself a couple of seconds after you stop — there is no Save button to miss, and a small chip beside the filename tells you where things stand (unsaved, saving…, saved).

Because the edit lands in the file rather than in a Clew-only sidecar, an annotation made here shows up in the viewer tab, on a canvas, in Preview.app, and on any other device the vault reaches. The same is true in reverse: annotate on an iPad and the marks are there when you open the note on your desktop. The three surfaces are three windows onto one file.

Layers

Some PDFs carry layers — optional content the viewer can show or hide, common in CAD drawings, maps, and documents exported from design tools. Open the sidebar and choose the layers tab (the stacked squares) to see them: tick a layer to show or hide it, with the document's own grouping, ordering and radio-button relationships honoured. Showing and hiding changes only what you see — the file is not modified.

Clew can also create layers, which is where they earn their keep in a document that arrived with none. Add a layer in the panel and it becomes the home for new annotations — the highlighted layer is where new ink, highlights and notes go — so a first reading can sit on one layer and a second on another, or your marks apart from a colleague's. A selected annotation's toolbar has a layer button for moving it between layers, and hiding a layer hides the annotations on it. Deleting a layer asks what should happen to its content: keep it, delete it, or move it to another layer. Reset restores the visibility the document itself declares. Layer edits are saved into the PDF like any annotation, so they travel with the file — a viewer without layer support still shows the document, it just cannot switch the layers.

![[lecture.mp3]] renders an audio player; ![[Lumiere - Arrival of a Train (1895).webm]] renders a video player with the usual controls. The demo vault's Media Gallery note demonstrates both, public-domain film included.

Canvases

![[Demo Canvas.canvas]] embeds a live, read-only view of a canvas — pannable and zoomable in place.

Embeds in exports

When a note is exported to LaTeX or PDF, image embeds become proper \includegraphics figures — a pixel width from the size alias is converted to points — and an embedded PDF is included the same way (which works for single-page PDFs). Audio and video have no meaning on paper and are omitted.

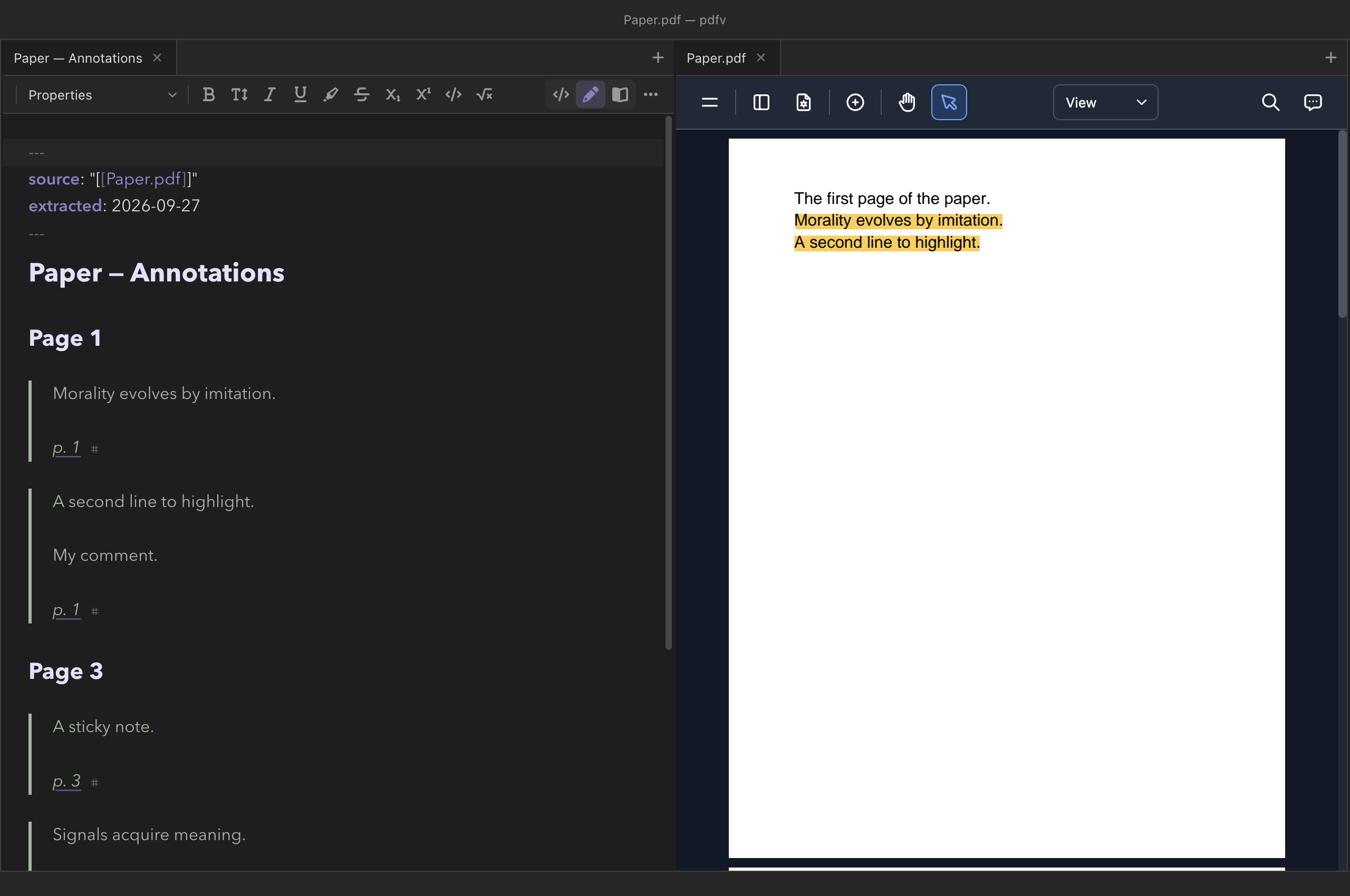

PDF annotations as a note

What you highlight and note in a PDF can become a note you link to and quote from. With the PDF's tab active, run PDF: extract annotations to a note from the palette, or right-click the PDF in the file explorer and choose Extract annotations to a note. Clew writes <name> — Annotations.md beside the PDF: a ## Page N heading per page, and for each annotation a quote of the text under it (read from the page itself), your comment, and a link back to its page.

• Each entry ends in a block id, ^pdf-…, so another note can quote a single highlight: ![[paper — Annotations#^pdf-…]].
• Run it again after more reading: annotations already in the note are left exactly as they are (write around them freely), new ones are added under their page, and nothing is ever removed.
• A link to a page, [[paper.pdf#page=12]], opens the PDF at that page — from a note, from reading mode, or from the annotations note itself.
• Highlights, underlines, strike-outs and squiggles quote their text; sticky notes and free text bring their comment; ink says it has no text.

Non-media files

Any other file type — an archive or a data file, say — can live in the vault and be linked with a plain [[name]], but Clew has no viewer for it: clicking it in the explorer does nothing, and the right-click menu's Reveal in Finder hands it to the application that owns it. Three non-media families get special treatment elsewhere: .canvas files open in the canvas, .bib files feed citation completion and bibliographies, and Word, Excel and PowerPoint documents open — and edit — in office tabs.

Where attachments live

Pasted and dropped files land in one folder, set in Settings → Files → Attachment folder — Attachments by default, created on first use. Nothing forces attachments to stay there: an image sitting next to the note that uses it works just as well, and subfolders inside the attachment folder are fine (the demo vault keeps an Attachments/Holiday/ folder of geotagged photos for its photo map). Since embeds resolve by name, the folder layout is an organizational choice, not a linking constraint — pick a scheme and let the setting enforce it for everything you paste from now on.
