Reading mode

Math and theorems

Clew's mathematics is LaTeX mathematics. Inline and display math are written with the delimiters every mathematical writer already knows, rendered by a locally bundled MathJax that works entirely offline; on top of that, the jmarkdown engine adds what a note-taking app almost never has — numbered equations you can cross-reference from prose, and a full family of theorem environments with shared, stable numbering. The same source exports to LaTeX and PDF, where the engine's amsmath and amsthm machinery takes over natively.

Inline and display math

Inline math goes between single dollar signs (or, equivalently, \(…\)):

Euler's identity, $e^{i\pi} + 1 = 0$, connects five constants.

Display math stands on its own line, between double dollars or \[…\]:

$$
\int_0^\infty e^{-x^2}\,dx = \frac{\sqrt{\pi}}{2}
$$

Everything between math delimiters is handed to MathJax verbatim — subscripts, commands, matrices, the lot — so anything you would write in a LaTeX document works here. Display blocks written with $$…$$ and \[…\] are unnumbered; numbered equations are the engine's own construct, described next.

A bare AMS environment also works as a display block, without any dollar-sign wrapper at all:

\begin{align}
f(x) &= x^2 - 1 \\
     &= (x-1)(x+1)
\end{align}

The engine recognizes a \begin{…}…\end{…} block at the start of a line, protects its contents from all Markdown processing, and passes it through for MathJax to typeset — nested environments such as a pmatrix inside an align are handled correctly. MathJax is configured with AMS numbering (tags: 'ams'), so environments that number their lines do, and MathJax-level \label/\eqref resolve between math blocks on the same page. For references you make from prose, though, use the engine's own equation environment below — those resolve at build time and survive LaTeX export.

Numbered equations

To number an equation and refer to it later, use the @begin(equation) environment:

@begin(equation){#eq-euler}
e^{i\pi} + 1 = 0
@end(equation)

As @ref[eq-euler] shows, the five constants are not strangers.

The body is raw mathematics — no $$ delimiters; the environment supplies them — and the engine itself assigns the number, counting @begin(equation) blocks in document order and placing (1), (2), … beside each. Because the numbering is done by the engine at build time rather than by MathJax in the browser, a reference like @ref[eq-euler] resolves to a hyperlinked number exactly the way figure and section references do, and the HTML and LaTeX outputs agree on every number.

The {#eq-euler} attaches the label. Two spellings are accepted: the shorthand {#name}, and the explicit {id=name} — use the explicit form when your label contains a colon ({id=eq:euler}), which the shorthand cannot carry.

Cross-references

Three reference forms work anywhere in prose, for equations and theorems alike (and for figures, tables, and sections, which have labels of their own):

@ref[key]

The bare number, as a hyperlink to the target — LaTeX's \ref. An equation's is bare too ("2"); write the parentheses yourself, or use @cref.

@cref[key]

A typed reference: the kind word plus the number — "equation (1)", "theorem 2", "lemma 3" — LaTeX's cleveref \cref. The engine knows what kind of thing each label marks, so you never write the word yourself and it can never disagree with the target.

@Cref[key]

The same, capitalized for the start of a sentence: "Equation (1)", "Theorem 2".

A reference to a label that does not exist renders as ?? — the same mark LaTeX uses — so a broken reference is visible in the output rather than silently wrong. In LaTeX export these forms become native \ref and \cref, so the print document resolves them with the real machinery.

What gets a number

• Equations from @begin(equation) — $$…$$ and \[…\] are never numbered.
• Theorems — theorem, lemma, corollary, proposition, definition, example, remark — share one counter: Theorem 1, Lemma 2, Corollary 3. A proof is unnumbered.
• Figures (subfigures 1a, 1b), tables and listings each count on their own.
• Headings, only when the note's header says Headings: numeric: every heading, the title included, 1., 1.1., 1.2. A reference to one says "section" or "subsection" by its depth.
• A target takes its key from {#key} or {id=key} on its opening line ({id=eq:mass} when the key has a colon, which the # form cannot carry), or from an @label[key] inside it. An @label in a heading takes the heading's number; anywhere else — a footnote included, for now — it has none, and a reference to it prints ??.

While you write

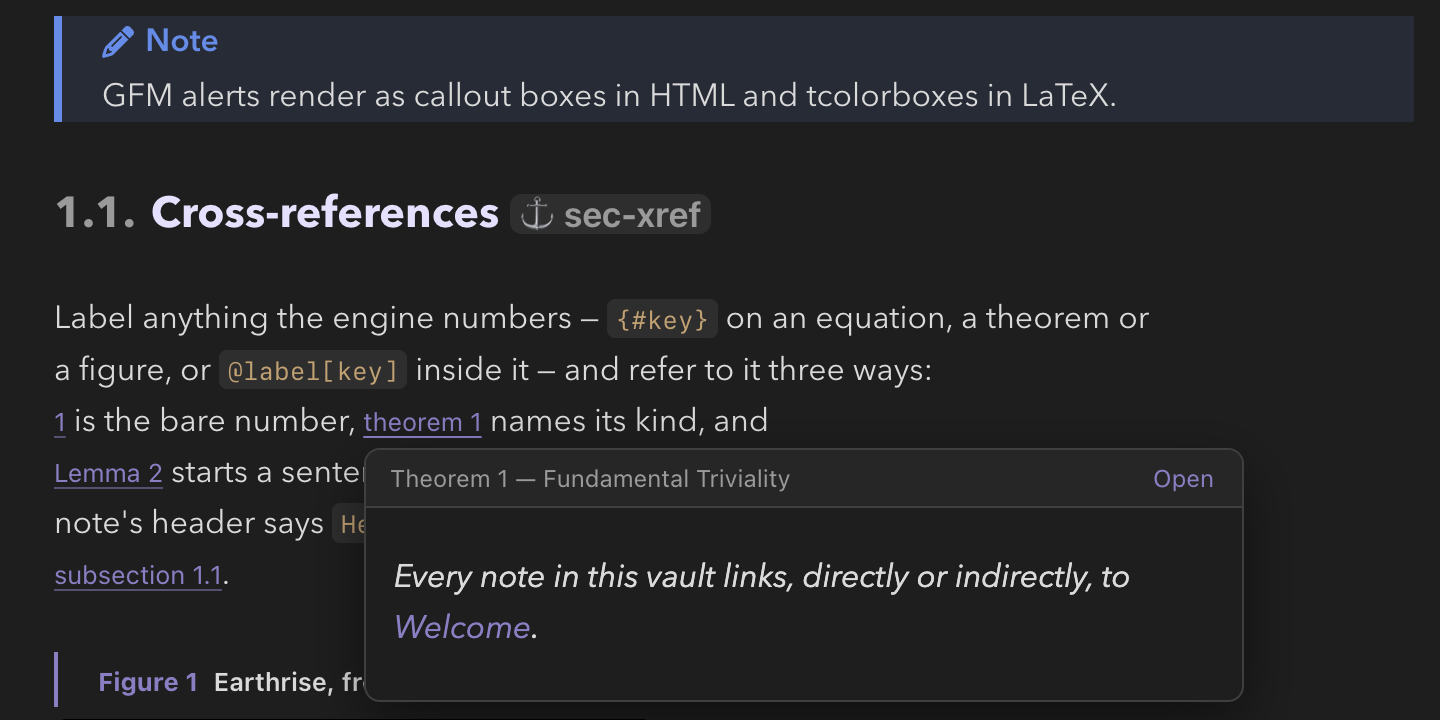

In live edit, every @ref, @cref and @Cref shows the number the rendered note will print, a numbered environment's heading says "Theorem 2" or "Figure 1", an @begin(equation) carries its "(n)", and numbered headings their "1.2.". Click a reference to jump to what it names (⌘[ comes back); ⌥-click edits it; hover it to preview the target. A reference to a key this note does not define shows ?? in red, as the engine prints it. Typing @ref[ (or @cref[, @Cref[) lists the note's labels with their numbers, and the palette's Jump to label… lists them to go to.

An environment a plugin defines as numbered is counted only when the plugin's manifest declares it; any other environment with a label shows ? — Clew will not guess what the export will print.

Theorem environments

The engine provides seven theorem-like environments plus proof. Each is written as a block environment:

@begin(theorem)[Pythagoras]{id=thm:pyth}
For a right triangle, $a^2 + b^2 = c^2$.
@end(theorem)

@begin(lemma)
If $x > 0$ then $\log x$ is defined.
@end(lemma)

@begin(proof)
By rearrangement. $\blacksquare$
@end(proof)

The optional bracket after the opener — [Pythagoras] — is the environment's name, rendered in parentheses after the number exactly as amsthm does: "Theorem 1 (Pythagoras)." The optional {id=…} attaches a cross-reference label, so @cref[thm:pyth] elsewhere produces "theorem 1".

The full set of kinds, and how each presents its body:

• theorem, lemma, corollary, proposition — the classical "plain" style: the body is italicized.
• definition, example — definition style: an upright body, since definitions read badly in italics.
• remark — remark style, also upright.
• proof — unnumbered, labelled "Proof.", closed with a QED mark.

How numbering works

All seven numbered kinds share one sequential counter: if a theorem is followed by a lemma and then a definition, they are Theorem 1, Lemma 2, Definition 3. This is a deliberate choice, and the classical one for mathematical writing — with per-kind counters, "does Lemma 1 come before or after Theorem 2?" is a puzzle a reader has to solve on every reference; with a shared counter, the numbers alone give the document order. A typed reference still names each kind correctly: @cref to a lemma says "lemma 2", never "theorem 2".

The body of a theorem is ordinary jmarkdown, so wikilinks, citations, math, and even footnotes work inside it — the demo vault's Dialect Demo note puts an inline footnote inside a theorem to make the point.

MathJax under the hood

Clew ships MathJax with the app and loads it from local files — there is no CDN request, and mathematics renders identically with no network connection at all. The configuration accepts the four delimiter pairs described above ($…$, \(…\), $$…$$, \[…\]) with the AMS extension enabled, and output is SVG, so rendered math is crisp at any zoom. When you edit a note, the re-rendered preview patches in place and math is re-typeset without the page flashing back to raw TeX (see How rendering works).

Math in export

Because the source is already LaTeX mathematics, export is not a translation. In HTML export the same MathJax pipeline runs; in LaTeX and PDF export the delimiters pass straight through to the real engine, @begin(equation) becomes an amsmath equation environment, and each theorem kind is declared with amsthm/thmtools sharing the theorem counter, with cleveref resolving the typed references. The numbers in your PDF match the numbers in your preview because both sides count the same blocks in the same order. See Exporting notes.

Practical advice

The jmarkdown dialect and TeX use some of the same characters, and it pays to keep the boundary straight:

• In prose, the dialect gives you TeX-style sub- and superscripts directly: H_2O, x^2, x^{10} render as H₂O, x², x¹⁰ with no math mode required. Reach for $…$ when you need actual mathematics — symbols, operators, spacing — rather than a lone sub- or superscript.
• Inside $…$, you are in TeX, and the dialect's remappings do not apply: *, /, _, and ^ all mean what they mean in LaTeX. Write $x_1^2$ without a second thought.
• Inside code spans and fences, nothing is interpreted at all — the place to show math source without rendering it.
• The body of @begin(equation) is taken verbatim, so underscores, carets, and backslashes survive untouched; you never need to escape for the Markdown layer inside it.

Reference

See also

• How rendering works — the render pipeline that typesets all of this, and how it updates as you type.
• The jmarkdown dialect — the prose-side sub/superscripts and the standard-Markdown switch.
• Citations and bibliographies — the other pillar of academic writing in Clew.
• Exporting notes — the LaTeX and PDF side of the same source.
